SC 1G SFPs


SC 1G SFPs
Download Datasheet

Description
The SC 1G SFP (Small Form-factor Pluggable) module provides a reliable and efficient solution for high-speed optical data transmission at 1Gbps. Featuring plug-and-play functionality, it allows for easy installation without the need for additional software. With its durable all-metal shell, the module ensures stable performance, low power consumption, and seamless integration into a variety of networking applications, making it ideal for both short-range and long-distance links.

Features

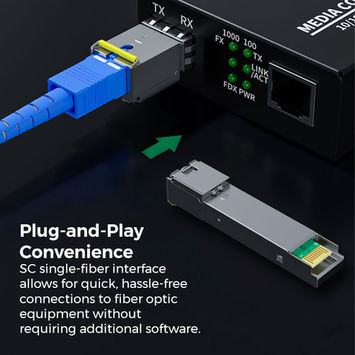

Plug-and-play
High stability
1.25Gbps data transmission rate

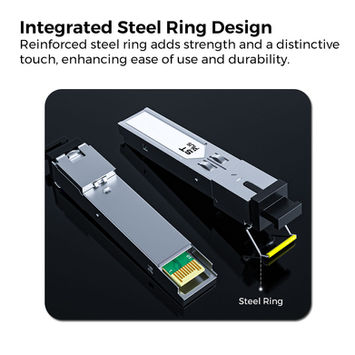

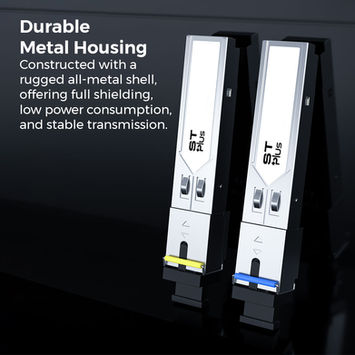

Durable construct
Hot-swappable
Low power consumption
Compact form factor

Technical Specifications
Connector Type: SC
Material: Zinc Alloy
Fiber Type: Singlemode
Channel: Simplex
Insertion Loss: <0.1dB
Return Loss: >60dB
Wavelength Range: 1310nm (Transceiver) /1550nm (Receiver)
Transmission Rate: 1.25Gbps
Transmission Distance: 20km
Transmission Power: -8dBm~0dBm
Receiver Sensitivity: <-15dBm
Operating Temperature: -30°C~70°C
Storage Temperature: -30°C~70°C

Variants
Module Type: Transceiver or Receiver
