Power Meter Adapters


Power Meter Adapters
Download Datasheet

Description

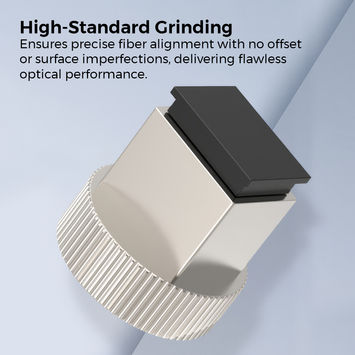

The Optical Power Meter Adapter is a high-quality, versatile solution designed to facilitate seamless connections between different types of fiber optic connectors to power meter. Manufactured from durable zinc alloy, this adapter is engineered to provide low insertion loss and high repeatability, ensuring reliable performance for a variety of optical applications. Its robust design, complete with a dust cap, makes it suitable for both field and laboratory use.

Features
Low insertion loss
Lightweight and compact
High interchangeability and reliability
Durable design (1000 plug and unplug cycle)
High precision
Dust cap to prevent contamination

Technical Specifications
Colour: Silver
Material: Zinc Alloy
Inner Diameter: 16mm
Outer Diameter: 18mm
Insertion Loss: <0.3dB
Return Loss: >55dB
Wavelength Range: 1260nm-1650nm
Operating Temperature: -20°C~80°C
Storage Temperature: -20°C~85°C

Variants
Connector Type: SC/UPC, SC/APC, ST, FC
