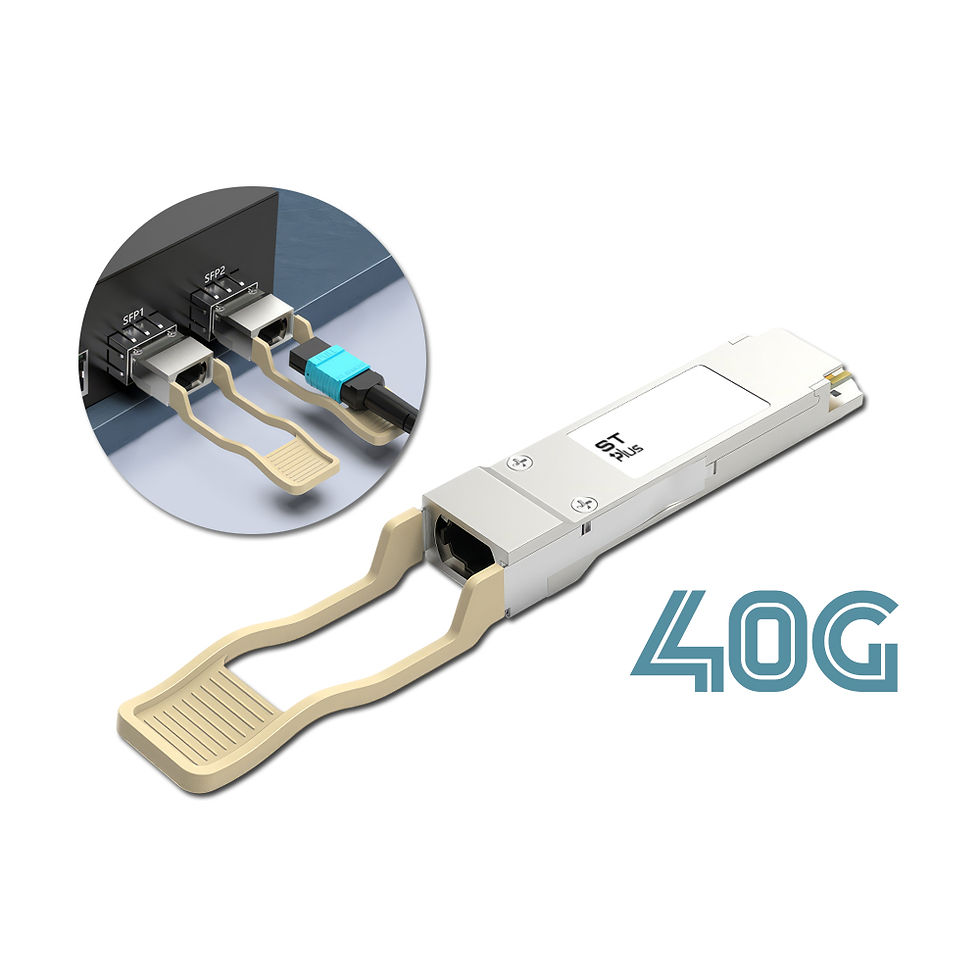

MPO 40G QSFP+s


MPO 40G QSFP+s
Download Datasheet

Description
The MPO 40G QSFP+ module is a high-performance multimode optical transceiver engineered for reliable data transmission at 40Gbps over distances up to 150 meters. With plug-and-play functionality and a compact design, it seamlessly integrates into high-density networking environments. Built with durable zinc alloy and optimized for energy efficiency, this module is ideal for data centers, cloud computing, and high-speed networking applications.

Features
Plug-and-play
High stability
40Gbps data transmission rate
Durable construct
Hot-swappable
Low power consumption
Compact form factor

Technical Specifications
Connector Type: MPO-8
Material: Zinc Alloy
Fiber Type: Multimode (OM3/OM4)
Channel: 4x10Gbps
Insertion Loss: <0.5dB
Return Loss: >20dB
Wavelength Range: 850nm
Transmission Rate: 40Gbps
Transmission Distance: Up to 150m (OM3/OM4)
Transmission Power: -7dBm~2dBm
Receiver Sensitivity: <-11.5dBm
Operating Temperature: 0°C~70°C
Storage Temperature: -20°C~85°C

Variants
N/A
