Metal Termination Boxes

Description

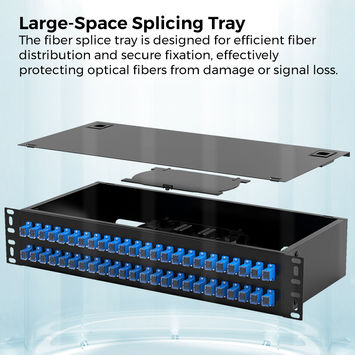

The Metal Termination Box serves as a robust termination point for fiber optic feeder cables, facilitating fiber splicing, splitting, and distribution. It is designed to provide strong protection and management for FTTx networks, including FTTZ (Fiber to the Zone) and FTTB (Fiber to the Building) while ensuring efficient operation in both indoor and outdoor settings.


Features

  • Easy installation

  • Enclosed structure

  • Pre-drilled mounting holes

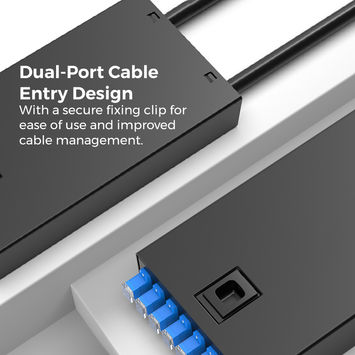

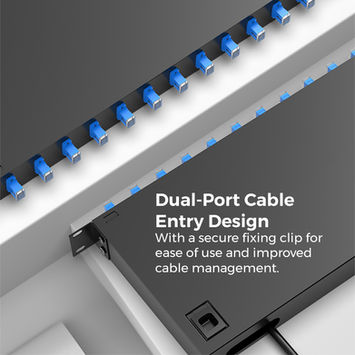

  • Cable routing options

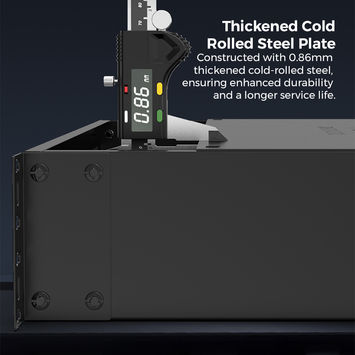

  • Straight through thickened cold rolled steel

  • Multiple combinations

  • Grounded insulation


Technical Specifications

Material: Cold Rolled Steel

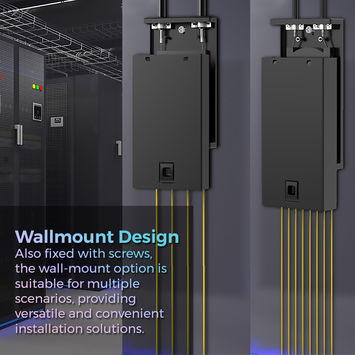

Mounting: Wall Mount (4 Port and 8 Port only) or Rackmount (12 Port, 24 Port and 48 Port)

Dimensions: 4 Port (200mmx111mmx35mm), 8 Port (260mmx134mmx40mm), 12 Port and 24 Port (1U 19”x200mmx45mm), 48 Port (2U 19”x200mmx90mm)

Colour: Black

Operating Temperature: 0°C~60°C

Storage Temperature: -20°C~60°C


Variants

Connector Type: SC, LC, ST, FC, MPO

Housing: Enclosed, Drawer

Port: 4 Port, 8 Port, 12 Port, 24 Port, 48 Port

Channel: Simplex, Duplex, Quadruplex
