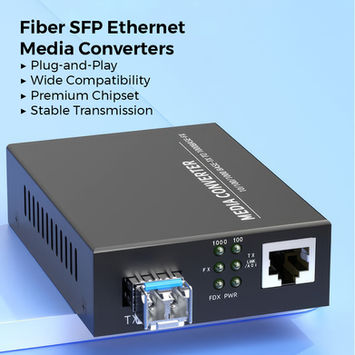

Fiber SFP Ethernet
Fiber SFP Ethernet
Download Datasheet
Description
The Fiber SFP Ethernet Extender converts Ethernet to fiber, supporting Gigabit (1.25G) speeds over singlemode (1310nm) and multimode (850nm) fibers. It features zero delay forwarding, automatic speed detection, and plug-and-play installation. Compact, durable, and flexible, it adapts to various SFP modules for different transmission distances.
Features
Gigabit (1.25G) transmission
Zero delay forwarding
Automatically detects and configures speed and mode
Compact and durable design
Plug-and-play installation
Technical Specifications
Fiber Connector: SFP
Fiber Type: Singlemode or Multimode
Media Connector: RJ45
Material: Steel
Dimensions: 1 Port SFP: 70mmx103mmx26mm | 24 Port SFP: 486mmx270mmx45mm
Weight: 1 Port SFP: 250g | 24 Port SFP: 2.5kg
Colour: Black
Wavelength: 1310nm (Singlemode), 850nm (Multimode)
Transmission Power; 0.5dBm-5dBm
Transmission Distance: Determined by SFP Module Used
Operating Temperature: -5°C~70°C
Storage Temperature: -20°C~70°C
Operating Humidity: 5%-90%
Power Supply: 1 Port SFP: DC 5V2A | 24 Port SFP: AC 220V
Variants
Fiber Connector: 1 Port SFP, 24 Port SFP
Grade: Normal, Industrial
Add-on: SFP Port, Ethernet Port
