Fans

Description

The Fan is designed to provide reliable cooling and ventilation for various electronic and industrial applications. Built with a shaded-pole AC motor and a robust die-cast aluminium frame, it ensures smooth and consistent airflow while maintaining durability in demanding environments. The fan’s precision, life-lubricated ball bearing system guarantees long-lasting performance, while its non-flammable thermoplastic impeller provides additional safety and reliability.


Features

  • AC motor

  • Die-cast aluminium frame

  • Life-lubricated ball bearing system

  • Pre-drilled mounting holes

  • 138m^3/hr max airflow

  • High toughness PBT blades

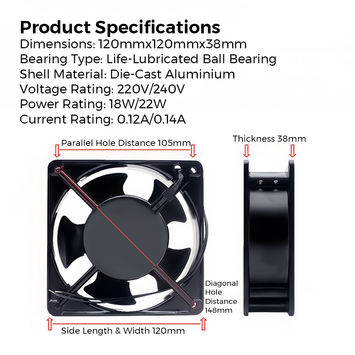

Technical Specifications

Shell Material: Die-Cast Aluminium

Blade Material: PBT

Bearing Type: Life-Lubricated Ball Bearing

Fan Speed: 2600RPM/3000RPM

Max Air Flow: 138m^3/hr

Noise Level: 35/45 dB(A)

Dimensions: 120mmx120mmx38mm

Weight: 500g

Colour: Black

Operating Temperature: -20°C~80°C

Storage Temperature: -20°C~80°C

Voltage Rating: 220V/240V

Power Rating: 18W/22W

Current Rating: 0.12A/0.14A

Power Supply Frequency: 50Hz/60Hz


Variants

N/A
